IIS request monitoring

Enabling IIS Request Monitoring Feature

For Airline servers

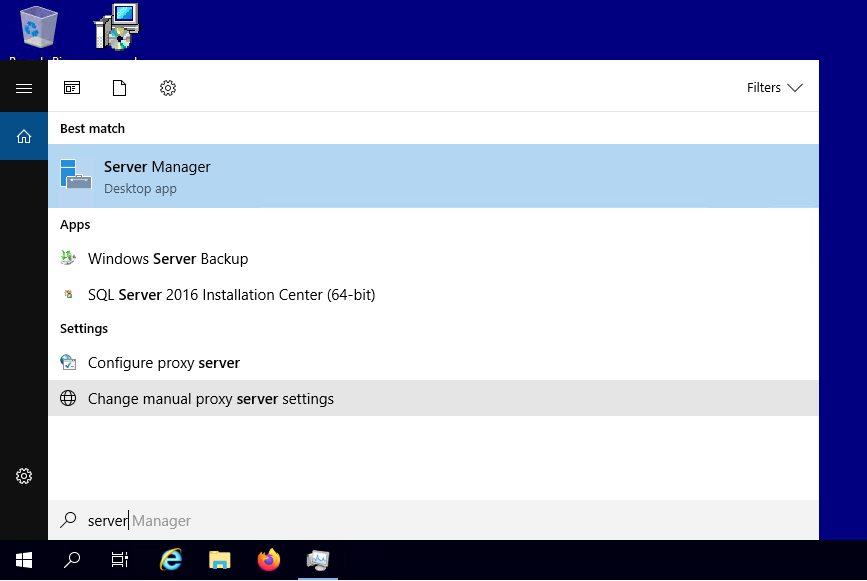

Step 1: open Server manager

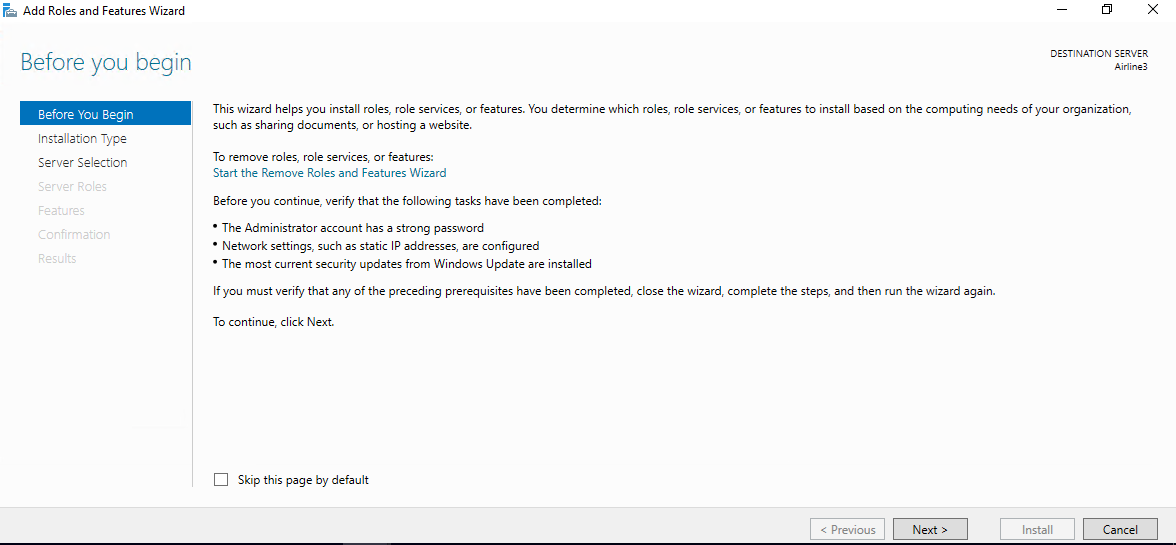

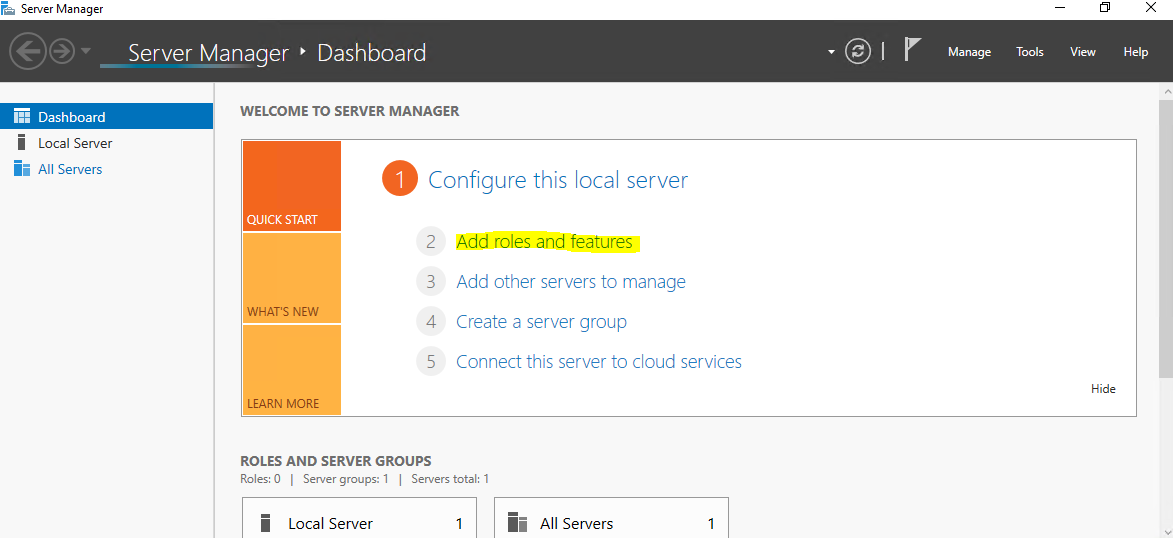

Step 2: Configure a new roles & features, Select the blue button





Click Next button to proceed,

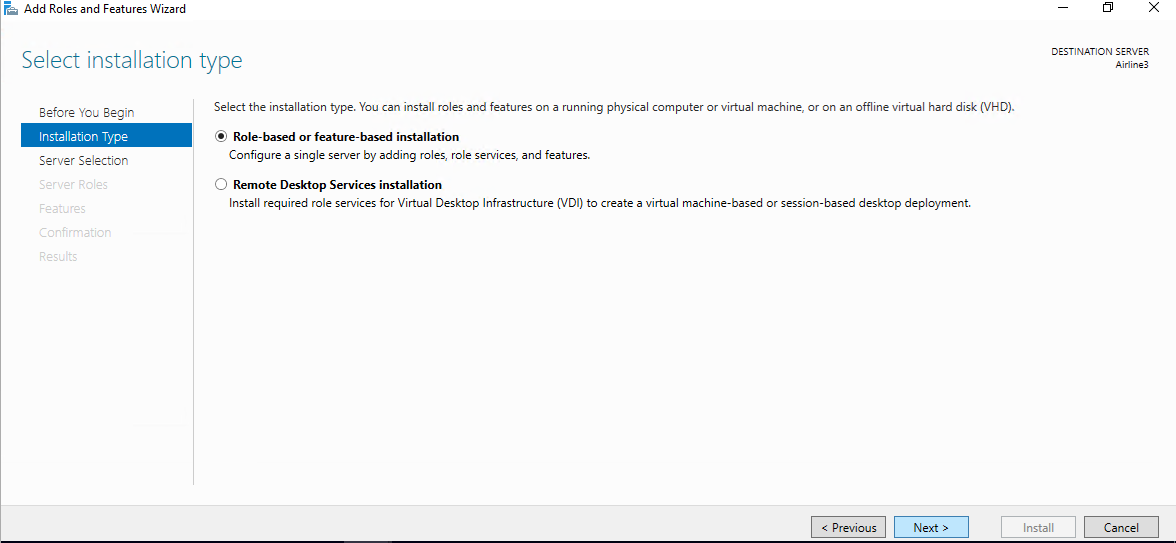

Step 3: Choose Role-based or feature based installation



Click Next to proceed,

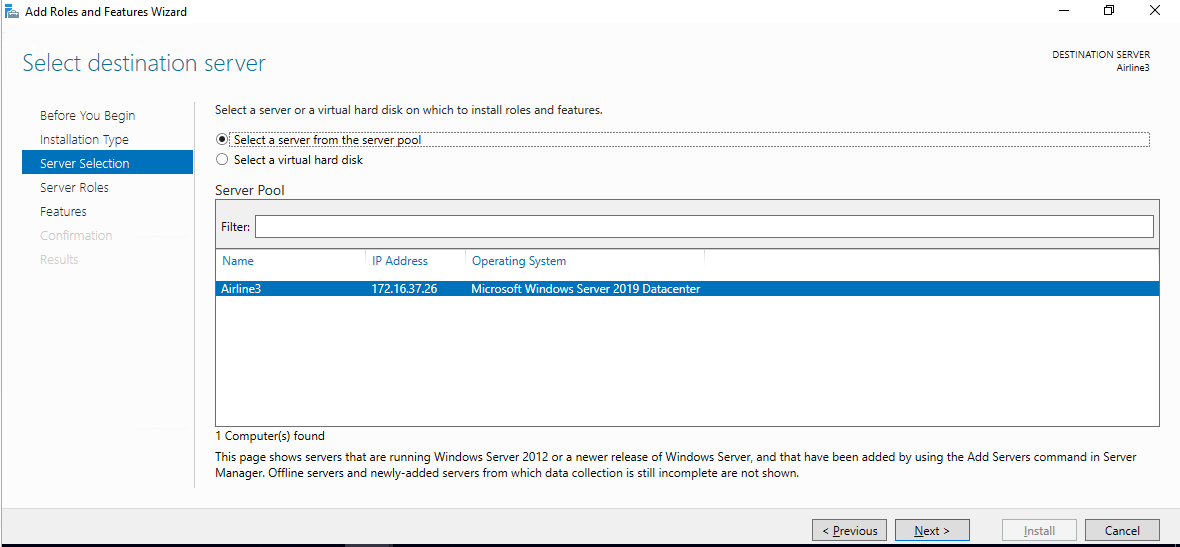

Step 4: Select a server from a server pool



click next to proceed,

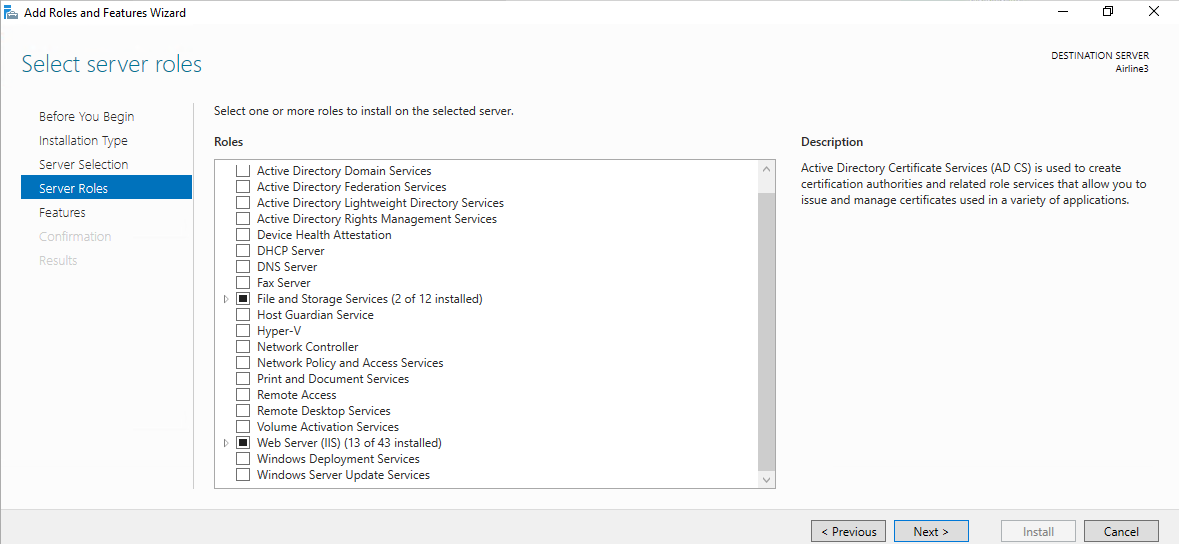

Step 5: Select Web Server (IIS),click the arrow to expand

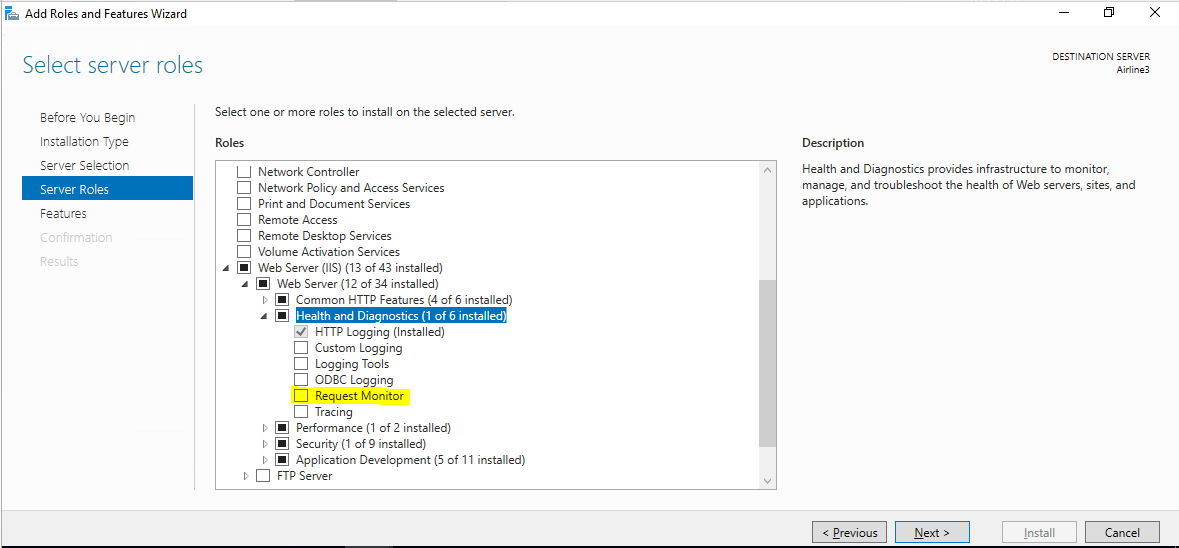

Step 6: Select the Dialog box of Request monitor

Click Next to proceed

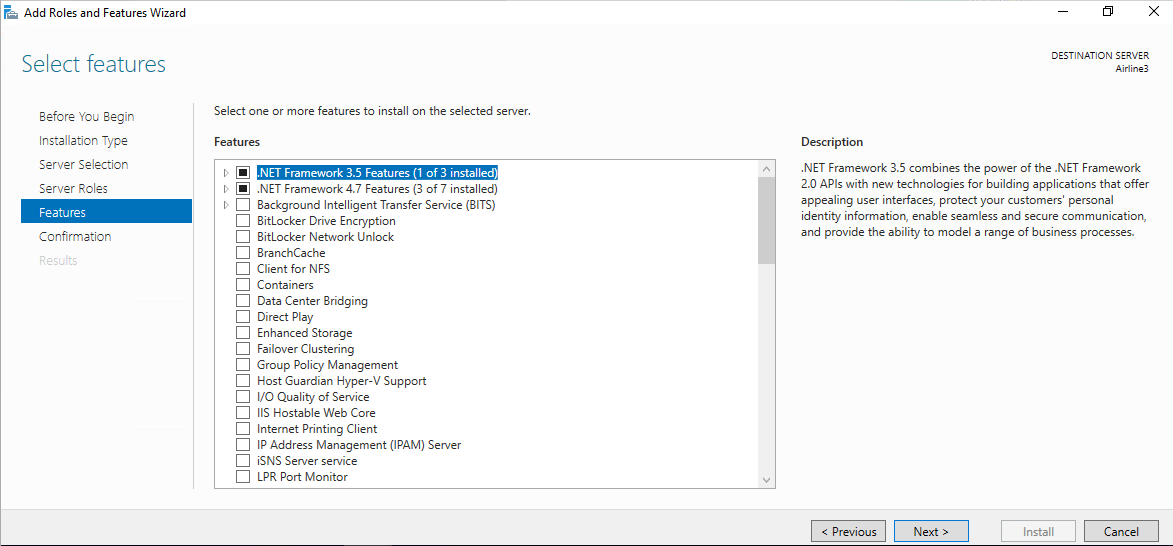

Step 7: Click Next, to proceed

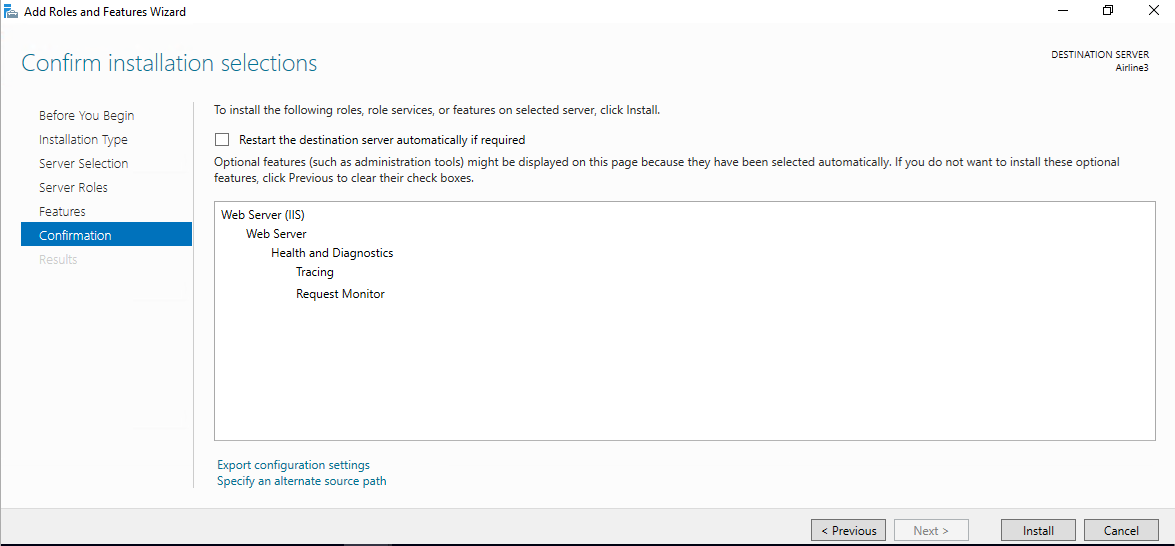

Step 8:Review Window shows, Click Install button to proceed,

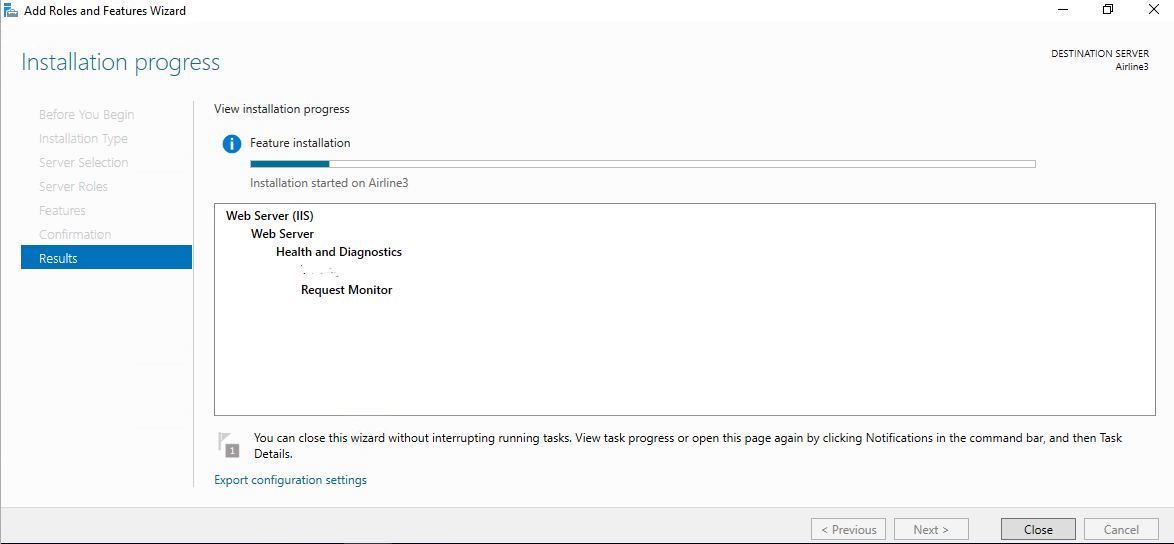

Installation Started,

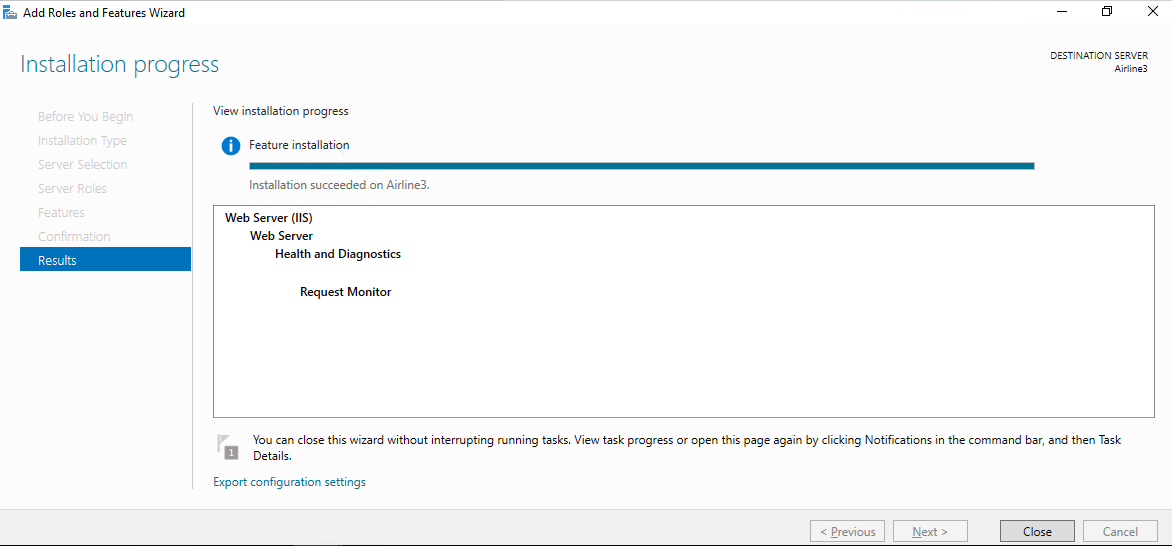

Step 9: Successfully installed the Request moniter in IIS web server

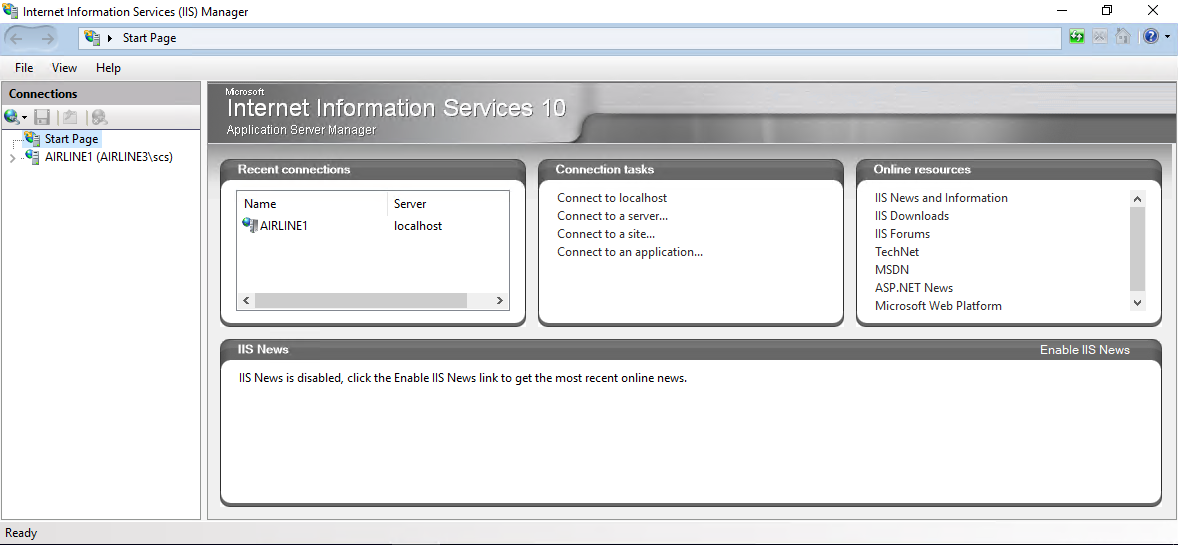

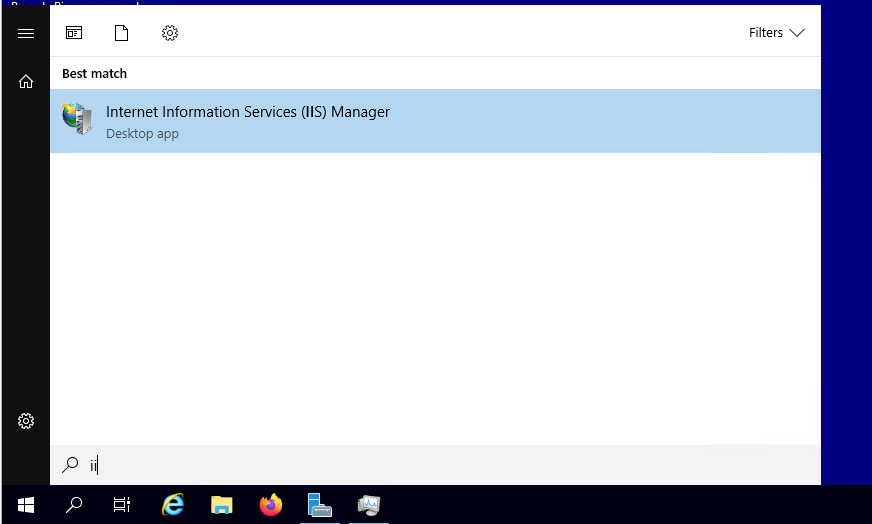

Step 10 : Open the IIS Manager

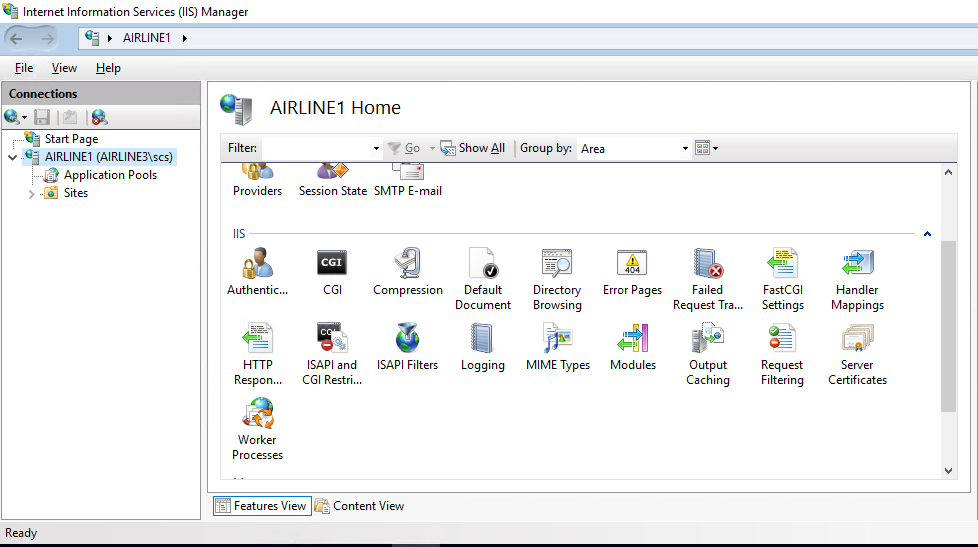

Step 11: Double click the Server Name, AIRLINE

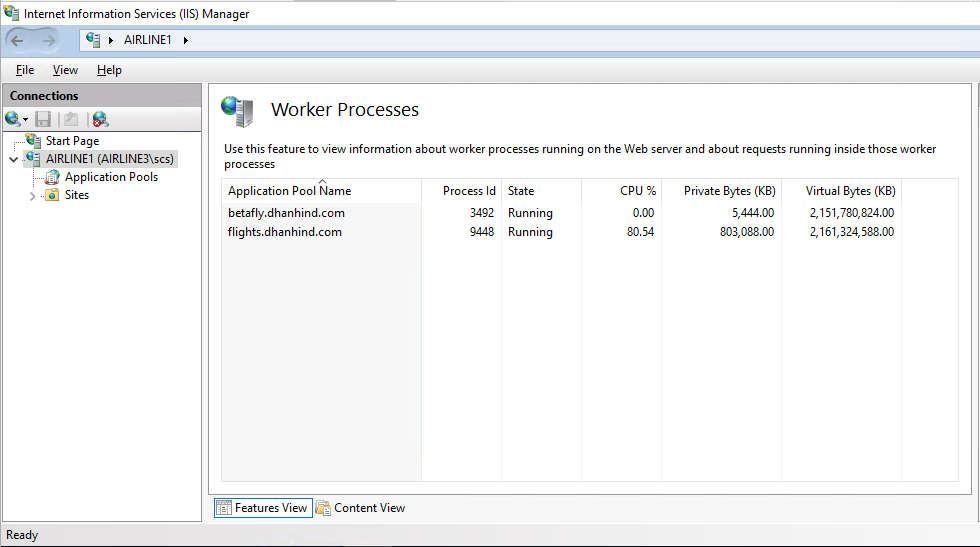

Step 12: Open Worker progress , To see Consumption of CPU request





Step 13 : Double click the Website name which runs there

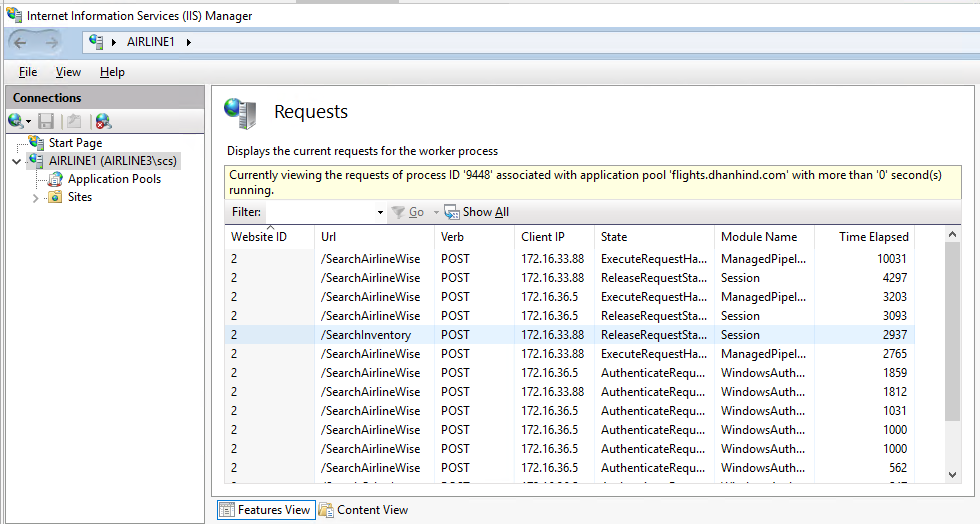

Step 14 : Finally the Request which received by web server.
